Electric Wiring Diagram of Toyota Camry Generator Installation

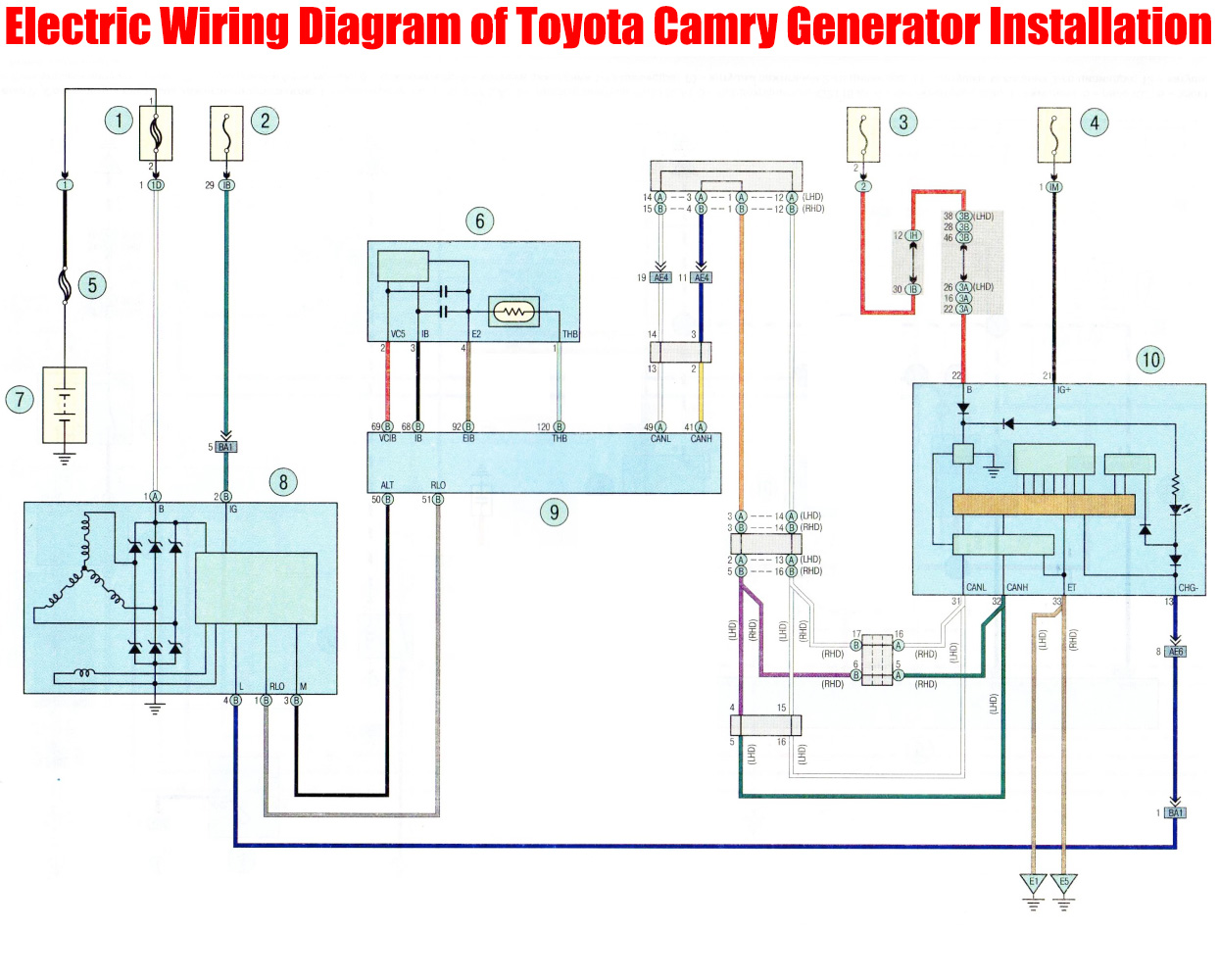

1 – Fuse ALT (120A); 2 – Fuse GAUGE 1 (10A); 3 – Fuse ECU-B (10A); 4 – Fuse GAUGE 2 (7.5A); 5 – Main power fuse FL; 6 – Battery charging current sensor; 7 – Battery; 8 – Generator; 9 – Engine control module; 10 – Instrument cluster.

Installing a generator in a Toyota Camry requires some mechanical knowledge and electrical expertise. Here are the general steps to follow:

  1. Disconnect the negative cable of the battery to prevent electrical shock or damage.
  2. Remove the old generator by unbolting the mounting bracket, disconnecting the electrical connectors, and removing the drive belt.
  3. Install the new generator by mounting it onto the bracket, connecting the electrical connectors, and installing the drive belt.
  4. Connect the battery’s negative cable and start the engine.
  5. Use a multimeter to test the generator’s voltage output. The output voltage should be between 13.5 and 14.5 volts.
  6. If the voltage is not within the range, adjust the generator’s regulator until it reaches the correct voltage.
  7. Finally, check for any loose connections, tighten them, and verify that the generator is working correctly.

Please note that these are general steps, and specific steps may vary depending on the make and model of the generator and the Toyota Camry. It is always recommended to consult the manufacturer’s instructions and/or seek the help of a qualified mechanic.
